SRX910LA AF | ARRAY FRAME FOR SRX910LA & SRX918SF FLYABLE SUB

  • MAP: $1,249.00 / EA
  • List Price: $1,800.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
ARRAY FRAME FOR SRX910LA & SRX918SF FLYABLE SUB
Click image to enlarge

SRX910LA AF
ARRAY FRAME FOR SRX910LA & SRX918SF FLYABLE SUB

  • UM : EA
  • Estimated Weight: 24.0

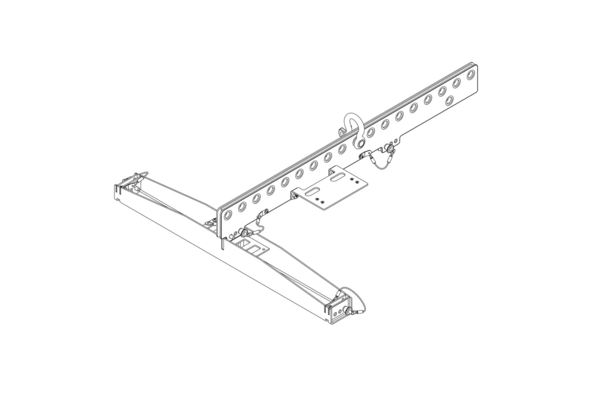

The JBL SRX910LA AF features a compact and lightweight two-part collapsible design compatible with SRX910LA and SRX918SF models. It supports precision pick-point resolution and is compatible with third-party laser inclinometers. The device accommodates shackles sized at 1/2 inch.

The package includes one spreader bar, one extension bar, one 1/2-inch shackle, and one laser bracket with hardware.

Construction : High-grade steel with anti-corrosion coating
Finish : Black powder coat
Compatible Shackle Size : 1/2-inch
Safe Limit : (13) SRX910LA | (5) SRX918SF
Maximum Limit : (16) SRX910LA | (8) SRX918SF

***For mixed arrays and arrays larger than the safe limit always use JBL simulation software to determine mechanical safety. For more information on Safe and Maximum Limits, refer to the SRX900 Rigging Manual.
