SRX922 | ACOUSTICALLY THREE-WAY, DUAL 12-INCH POWERED POINT-SOURCE SPEAKER, 3-WAY, 90 X 60

  • MAP: $2,499.00 / EA
  • List Price: $3,600.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
ACOUSTICALLY THREE-WAY, DUAL 12-INCH POWERED POINT-SOURCE SPEAKER, 3-WAY, 90 X 60
ACOUSTICALLY THREE-WAY, DUAL 12-INCH POWERED POINT-SOURCE SPEAKER, 3-WAY, 90 X 60
ACOUSTICALLY THREE-WAY, DUAL 12-INCH POWERED POINT-SOURCE SPEAKER, 3-WAY, 90 X 60
ACOUSTICALLY THREE-WAY, DUAL 12-INCH POWERED POINT-SOURCE SPEAKER, 3-WAY, 90 X 60
ACOUSTICALLY THREE-WAY, DUAL 12-INCH POWERED POINT-SOURCE SPEAKER, 3-WAY, 90 X 60
ACOUSTICALLY THREE-WAY, DUAL 12-INCH POWERED POINT-SOURCE SPEAKER, 3-WAY, 90 X 60
Click image to enlarge
ACOUSTICALLY THREE-WAY, DUAL 12-INCH POWERED POINT-SOURCE SPEAKER, 3-WAY, 90 X 60
ACOUSTICALLY THREE-WAY, DUAL 12-INCH POWERED POINT-SOURCE SPEAKER, 3-WAY, 90 X 60
ACOUSTICALLY THREE-WAY, DUAL 12-INCH POWERED POINT-SOURCE SPEAKER, 3-WAY, 90 X 60
ACOUSTICALLY THREE-WAY, DUAL 12-INCH POWERED POINT-SOURCE SPEAKER, 3-WAY, 90 X 60
ACOUSTICALLY THREE-WAY, DUAL 12-INCH POWERED POINT-SOURCE SPEAKER, 3-WAY, 90 X 60
ACOUSTICALLY THREE-WAY, DUAL 12-INCH POWERED POINT-SOURCE SPEAKER, 3-WAY, 90 X 60

SRX922
ACOUSTICALLY THREE-WAY, DUAL 12-INCH POWERED POINT-SOURCE SPEAKER, 3-WAY, 90 X 60

  • UM : EA
  • Estimated Weight: 117.0

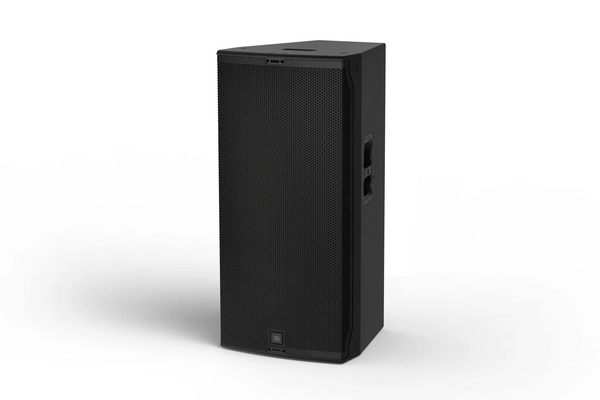

The JBL Professional SRX922 is a compact, acoustically three-way, dual 12" powered point-source loudspeaker designed for professional sound systems that need high output, strong directivity control, and full-range performance from a trapezoidal enclosure. It is a strong fit for high-output mains, side fills, portable production systems, rental and staging, houses of worship, performance venues, schools, corporate AV, and larger SRX900 Series deployments. The SRX922 uses dual 12" low-frequency woofers, a 6.5" horn-loaded midrange driver, and a 1.5" annular-diaphragm compression driver to deliver more low-frequency headroom than traditional single-woofer designs while staying compact for transport, rigging, and installed use. It features dual 90° x 60° Progressive Transition™ waveguides, a dipole LF configuration for enhanced vertical directivity control, four flared ports for low-frequency extension, integrated Class-D amplification, onboard DSP, rear LCD configuration, Ethernet/software control, and eight M10 QuickLink™ suspension points. JBL lists the SRX922 with a 40 Hz–17.5 kHz frequency range, 138 dB maximum SPL, 1100W continuous power rating, outdoor-grade birch plywood construction, DuraFlex™ finish, and dedicated accessories for transport, rain protection, and suspension.

Features

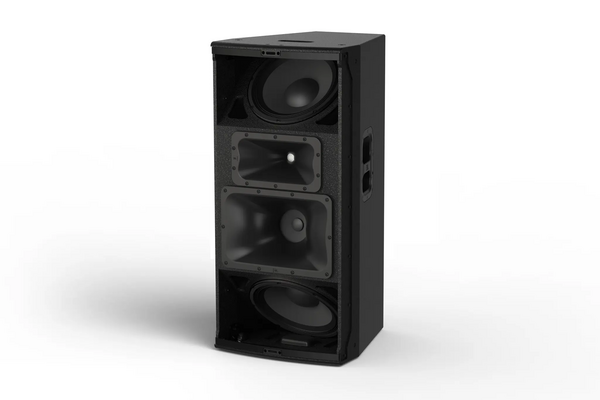

  • Includes dual 12-inch LF woofers, a 6.5-inch horn-loaded MF driver, and a 1.5-inch annular-diaphragm compression driver
  • Symmetrically-arranged dual LF section provides double the low-frequency headroom of traditional single-woofer designs
  • Dipole configuration delivers enhanced vertical directivity control
  • Horn-loaded MF section enables LF drivers to operate in their most efficient and controlled bandwidth
  • Dual 90° × 60° Progressive Transition™ waveguides provide smooth, predictable coverage
  • Four large, flared ports extend low-frequency response down to 50 Hz
  • 80 Hz high-pass preset available for applications using SRX900 subwoofers
  • Voicing and phase response carefully optimized to match SRX900 line-source products
  • Integrated amplification delivers plug-and-play operation

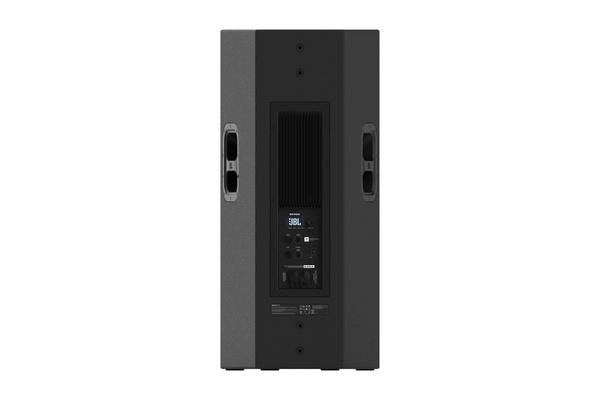

  • Rear LCD enables fast configuration
  • DSP includes 24 user-adjustable filters, 2,000 ms delay, and essential loudspeaker management tools

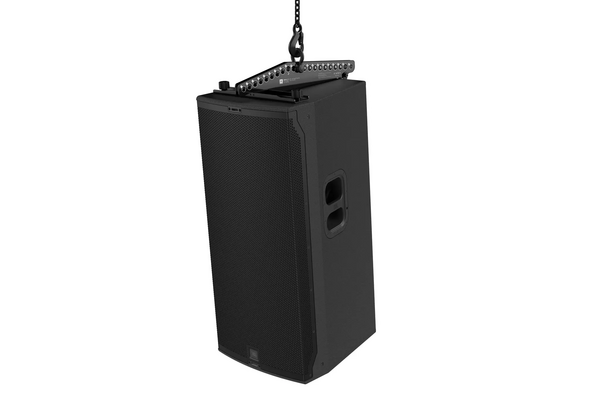

  • Eight M10 Quick-Link™ attachment points are provided for suspension using standard M10 eye bolts
  • Constructed from outdoor-grade Baltic birch plywood for excellent durability
