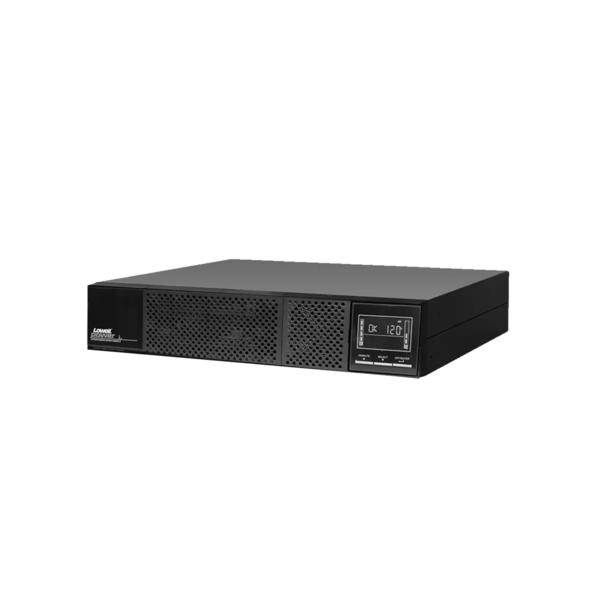

UPS9A-3000-IP |

UPS9A-3000-IP

2U MODELS:  Online double conversion UPS solution offers power conditioning and outage protection in a compact and flexible rack or tower format. With near unity power factor operation, the UPS provides maximum usable power to equipment and protects it with a 3-year warranty (optional 5-year extended warranty). These 2U models provide scalable battery capacity when extended protection is required. The powerful charger can provide up to 8 amps of current to quickly recharge up to 7 matching battery packs (order separately).

1U MODEL: Model UPS9AC-1000 offers up to 98% efficiency to lower energy consumption and includes a hot swappable battery and 4-point rack-mount kit. 1000VA (800W).

• Power Rating:  1000VA to 3000VA
• Line Cord:  5-6 ft.
• Chassis:  1U or 2U (depends on size, see spec sheet)
• Battery: Lead Acid
• Battery Run Times:  vary based on condition, age, cycles, and ambient temperature.
• Output Voltage: 120VAC nominal
• Waveform:  Pure sine wave
• Efficient operation:  Up to 98%
• Hot swappable battery
• 4-point rackmount rail kit (2U models also include tower pedestals)
• 3-year warranty on electronics and battery
