VLA-C125S-BK | SUBWOOFER FOR VLA COMPACT LINE ARRAY SYSTEM. DUAL 15" DIFFERENTIAL DRIVE® TRANSDUCERS
VLA-C125S-BK
SUBWOOFER FOR VLA COMPACT LINE ARRAY SYSTEM. DUAL 15" DIFFERENTIAL DRIVE® TRANSDUCERS
VLA-C125S-BK
SUBWOOFER FOR VLA COMPACT LINE ARRAY SYSTEM. DUAL 15" DIFFERENTIAL DRIVE® TRANSDUCERS
- UM : EA
- Estimated Weight: 138.0

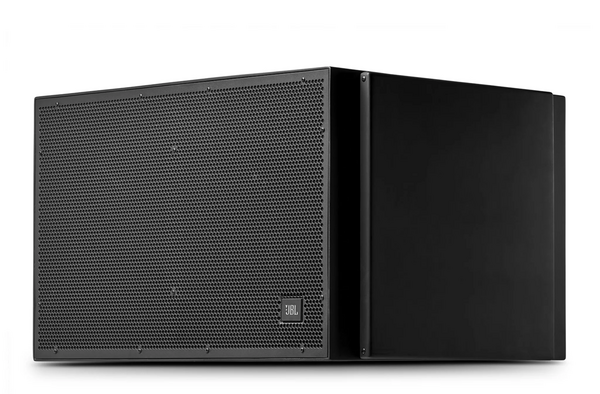

The VLA-C125S uses JBL proven technology components, featuring dual 15” Differential Drive® transducers.
Enclosures feature multi-layer reinforced fiberglass and steel end-panels. Grilles are zinc plated, powder coated 14-gauge perforated steel with an acoustically transparent black grill cloth backing, a hydrophobic mesh underlayer, and a waterproof rail system.
The rigging system is inherent to the design of the system. Inter-box angles are selected when the array is assembled. Other accessories include a rigging frame, pull-back bar, and a cardioid kit.
Features:
- Compact line array module optimized forpermanent install applications
- Advanced technology componenttransducers for low weight and high output
- Outdoor IP55 rated enclosure forprotection from dust and water
- Comprehensive rigging points for creating aline array configuration
- Fiberglass box construction and weatherizedcomponents

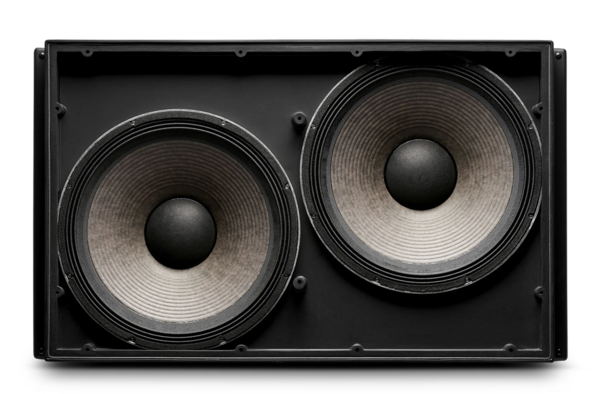

- Dual 15” transducers
| Frequency Range (-10dB) | 52 Hz – 210 Hz |
|---|---|
| Frequency Response (±3 dB) | 62 Hz – 123 Hz |
| System Power Rating | 1600 W Continuous Pink Noise (6400 W peak), 2 hrs800 W Continuous Pink Noise (3200W peak), 100 hrs |
| Maximum Input Voltage | 80 V Rms (2 hrs), 160 V peak |
| Maximum SPL (1m) | 127 dB Cont. Ave (2 hrs), 133 dB Peak |
| Sensitivity | 98 dB (52 Hz – 210 Hz, 2.83V) |
| Impedance | 4Ω, 3.0Ω min @ 195 Hz |
| Amplifiers | Crown DCi Family with DSP on-board |
| Recommended | Crown DCi 2 | 2400N Crown DCi 4 | 2400N |
| LF Driver | 2 x 2275H, 304 mm (15 in) diameter , each with two 76 mm (3 in) diameter voice coils, Neodymium Differential Drive, Direct Cooled |
| Enclosure Material | Fiberglass shell, gelcoat finish, with 18 mm Birch plywood internal bracing. |
| Grille | Powder coated 14 gauge hex-perforated steel with zinc under-coating, backed with acoustically transparent cloth and hydrophobic screen. |
| Inter-Enclosure Angles | VLA-C125S to VLA-C125S: 0° using VLA-C125S Bracket Plate (included with VLA-C125S)VLA-C265 below VLA-C125S Subwoofer (VLA-C265 cannot be connected above C125S): 0°, 5° using VLA-C125S Bracket Plate (included with VLA-C125S)VLA-C2100 below VLA-C125S Subwoofer (VLA-C2100 cannot be connected above C125S): 0°, 7.5° using VLA-C125S Bracket Plate (included with VLA-C125S) |
| Environmental | IP-55 rating per IEC529 (dust protected and protected against jets of water). |
| Terminals | CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9mm (0.375 in) spade lugs. Touch-proof covers. Full set of terminals on back panel, plus optional-use inter-cabinet connection terminals located on top and bottom panels of cabinet. |
| Colors | -GR: Gray (similar to Pantone 420C), -BK: Black |
| Dimensions (H x W x D) | 508 x 848 x 634 mm (20.0 x 33.4 x 24.9 in) |
| Net Weight (each) | 56.7 kg (125 lbs) |
| Shipping Weight (ea) | 62.6 kg (138 lbs) |
| Included Accessories | 2 x VLA-C125S Bracket Plates8 pcs. M10 x 35 mm stainless steel bolts (1.5mm pitch, 6 mm hex-drive) for attaching Bracket Plates2 pcs. Plastic Trim Cover Panels for Bracket Plates, each attaches via4 pcs (8 total) 3-32 x ½” trusshead, phillips-drive, stainless steel bolts. |
| Optional Accessories | VLA-C-SB2 (JBL-VLACSB2BK) Suspension Bracket KitVLA-C125S-ACC Kit – For wiring of 3 VLA-C-125S subwoofers in cardioid configuration (2 front-facing and 1 rear-facing). Allows for neat, unexposed inter-cabinet wiring via the tops and bottoms of cabinets. |
