VLA-C2100-GR | TWO-WAY FULL RANGE LOUDSPEAKER WITH 2 X 10" DIFFERENTIAL DRIVE
VLA-C2100-GR
TWO-WAY FULL RANGE LOUDSPEAKER WITH 2 X 10" DIFFERENTIAL DRIVE
VLA-C2100-GR
TWO-WAY FULL RANGE LOUDSPEAKER WITH 2 X 10" DIFFERENTIAL DRIVE
- UM : EA

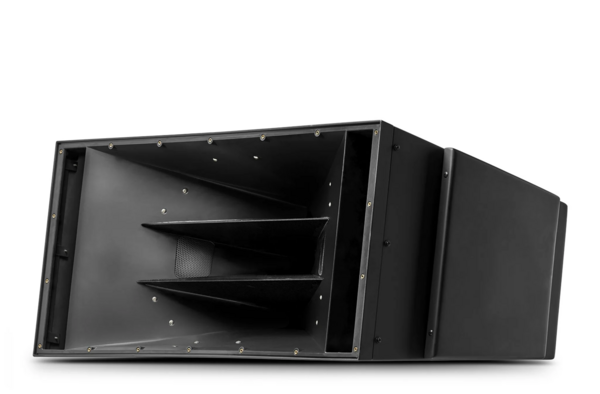

VLA-C2100-GR is a two-way full-range loudspeaker featuring dual 10-inch Differential Drive low-frequency drivers (model 2261) with 3-inch voice coils. The high-frequency section includes three D2415 drivers with 1.5-inch diameter annular diaphragms, 1.5-inch voice coils, and neodymium motors, horn-loaded for pattern control and sensitivity.

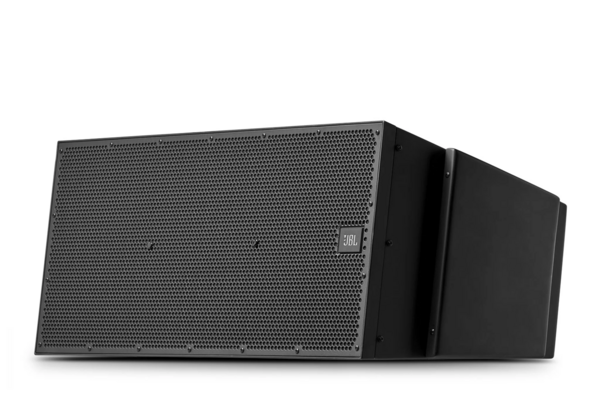

The enclosure is constructed from multi-layer reinforced fiberglass with steel end panels. The baffle consists of 14-gauge zinc-plated, powder-coated perforated steel with an acoustically transparent black cloth backing, a hydrophobic mesh underlayer, and a waterproof rail system. The integrated rigging system allows selection of inter-box angles during array assembly. Additional accessories include a rigging frame, pull-back bar, and cardioid kit for subwoofer configuration.
Features:
- Compact line array module
- Advanced technology transducers for low weight and high output
- Outdoor IP55 rated enclosure
- Comprehensive rigging points for line array configuration
- Fiberglass box construction and weatherized components
- Bi-amplified or passive feeding options
- 100° horizontal coverage pattern
| Frequency Range (-10dB) | 86 Hz - 18 kHz |
|---|---|
| Frequency Response (±3 dB) | 109 Hz – 15.3 kHz |
| Full Range Power | 800 W Continuous Pink Noise (3200 W peak), 2 hrs; 400 W Continuous Pink Noise (1600 W peak), 100 hrs |
| Bi-amp LF Power | 800 W Continuous Pink Noise (3200 W peak), 2 hrs; 400 W Continuous Pink Noise (1600 W peak), 100 hrs |
| Bi-amp HF Power | 150 W Continuous Pink Noise (600 W peak), 2 hrs; 50 W Continuous Pink Noise (200 W peak), 100 hrs |
| Full-RangeVage | 80 V RMS (2 hrs), 160 V peak |
| Maximum SPL (1m) | 131 dB Cont. Ave (2 hrs), 137 dB Peak |
| Coverage Pattern (-6 dB) | Horizontal 100° (+5°/-15°, 1.5 kHz to 15 kHz), Vertical varies with array size and configuration |
| Amplifiers | Crown DCi Family with DSP on-board; recommended models: Crown DCi 2 | 1250N, Crown DCi 4 | 1250N/ND/DA, Crown DCi 2 | 2400N, Crown DCi 4 | 2400N |
| LF Driver | 2 x 2261FF, 254 mm diameter, each with two 76 mm diameter voice coils, Neodymium Differential Drive, Direct Cooled |
