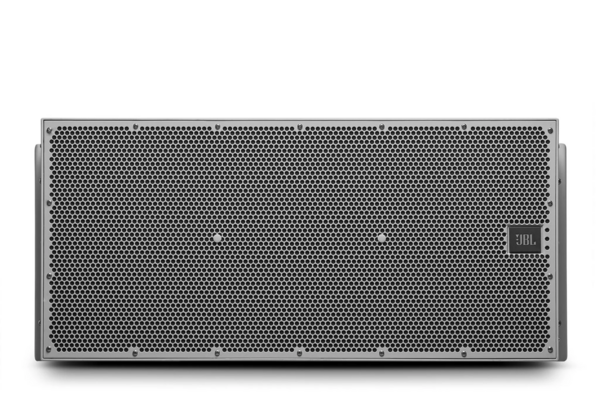

VLA-C265-GR | TWO-WAY HORN-LOADED LINE ARRAY LOUDSPEAKER SYSTEM. 65° HORIZONTAL HORN COVERAGE PATTERN.

The VLA-C265 is a two-way full-range loudspeaker featuring dual 10-inch Differential Drive low-frequency drivers, each with a 3-inch voice coil. The high-frequency section is horn-loaded and includes three D2415 drivers, each equipped with 1.5-inch annular diaphragm diaphragms, 1.5-inch voice coils, and neodymium magnets. This configuration provides controlled directivity and sensitivity optimized for sound reinforcement applications.

The enclosure is constructed from multi-layer reinforced fiberglass with steel end panels. The front grille consists of 14-gauge perforated steel that is zinc plated and powder coated, backed by acoustically transparent black baffle cloth, a hydrophobic mesh underlayer, and incorporates a waterproof rail system. The rigging system is integrated into the enclosure design, allowing fixed inter-box angles during array assembly, and compatible accessories include a rigging frame, pull-back bar, and a cardioid kit designed for subwoofer applications.

• Compact line array module for permanent installation
• Advanced transducers for low weight and high output
• Outdoor IP55 rated enclosure for dust and water protection
• Comprehensive rigging points for line array configuration
• Fiberglass construction with weatherized components
• Bi-amplifiable or passive feed options
• 65° horizontal coverage pattern

Frequency Range	85 Hz - 19 kHz
Frequency Response	108 Hz – 16.5 kHz (±3 dB)
Power Handling Full Range	800 W continuous pink noise (3200 W peak), 2 hrs; 400 W continuous pink noise (1600 W peak), 100 hrs
Power Handling Bi-amp LF	800 W continuous pink noise (3200 W peak), 2 hrs; 400 W continuous pink noise (1600 W peak), 100 hrs
Power Handling Bi-amp HF	150 W continuous pink noise (600 W peak), 2 hrs; 50 W continuous pink noise (200 W peak), 100 hrs
Maximum SPL (1 m)	131 dB continuous average (2 hrs), 137 dB peak
Coverage Pattern (horizontal)	65° (+15°/-10°, 1.5 kHz to 15 kHz)
Amplifiers	Crown DCi Family with DSP on-board, recommended models include DCi 2/4 | 1250NC, DCi 2/4 | 2400NC
LF Driver	2 x 2261FF 254 mm (10 in) diameter, each with two 76 mm (3 in) diameter voice coils, Neodymium Differential Drive, Direct Cooled
HF Driver	3 x 2415K D2 Dual Diaphragm Dual Voice Coil Compression Drivers, each with two 38 mm (1.5 in) voice coils; 21 mm (0.8 in) exit
Environmental Rating	IP-55 (dust protected and protected against water jets)
