VRX918S | 18" COMPACT, FLYING SUBWOOFER; 2268H DIFFERENTIAL DRIVE LF; INTEGRAL FLYING HARDWARE COMPATIBLE

  • MAP: $2,559.00 / EA
  • List Price: $2,590.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
18" COMPACT, FLYING SUBWOOFER; 2268H DIFFERENTIAL DRIVE LF; INTEGRAL FLYING HARDWARE COMPATIBLE
18" COMPACT, FLYING SUBWOOFER; 2268H DIFFERENTIAL DRIVE LF; INTEGRAL FLYING HARDWARE COMPATIBLE
Click image to enlarge
18" COMPACT, FLYING SUBWOOFER; 2268H DIFFERENTIAL DRIVE LF; INTEGRAL FLYING HARDWARE COMPATIBLE
18" COMPACT, FLYING SUBWOOFER; 2268H DIFFERENTIAL DRIVE LF; INTEGRAL FLYING HARDWARE COMPATIBLE

VRX918S
18" COMPACT, FLYING SUBWOOFER; 2268H DIFFERENTIAL DRIVE LF; INTEGRAL FLYING HARDWARE COMPATIBLE

  • UM : EA
  • Estimated Weight: 86.0

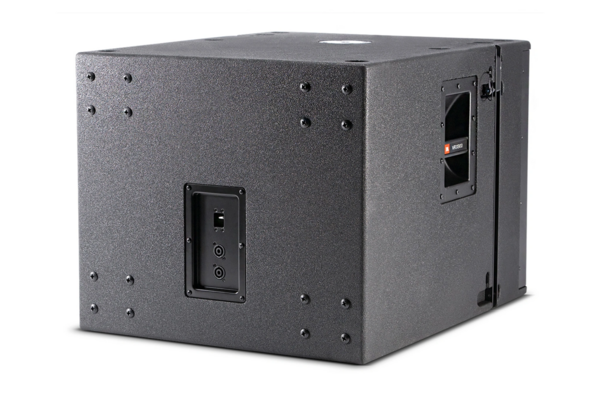

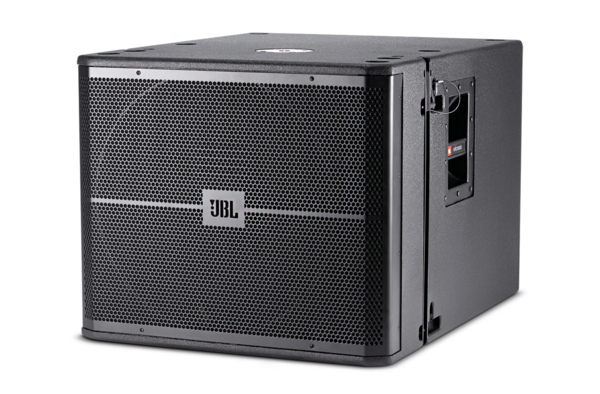

The VRX918S is an 18-inch subwoofer designed for suspension mounting. It features a 2268H neodymium magnet and an 18-inch woofer utilizing a patented Differential Drive technology. The enclosure is front-loaded and vented to optimize airflow and acoustic performance.

Features:

  • Integral rigging hardware for simple connection of VRX932LA line-arrays and optional array frame
  • 18 inch woofer with 2268H Differential Drive for extended low-frequency output
  • Large port area for reduced distortion
  • 20 mm threaded pole socket for secure satellite speaker mounting
Power Rating 800 W / 1600 W / 3200 W
Frequency Range 31 Hz – 220 Hz
Recommended Crossover Frequencies 80 Hz, 24 dB/oct HPF and LPF
System Maximum SPL 130 dB peak
System Sensitivity 95 dB SPL (1W @ 1m)
LF Driver 1 x JBL 2268H 18 in Differential Drive woofer
Nominal Impedance 8ohms
powered Tunings Available at www.jblpro.com
Enclosure 18 mm, 13-ply birch plywood
Inputs 2 x Neutrik Speakon NL-4
