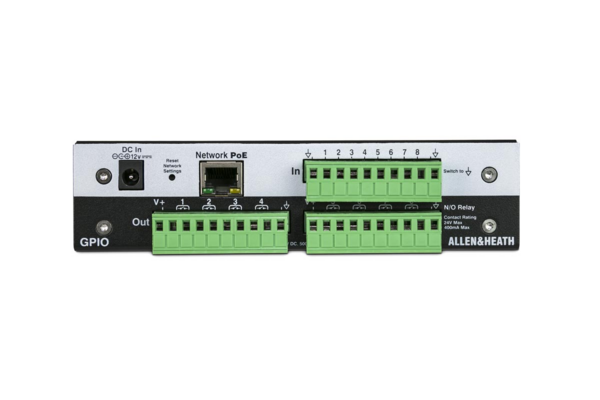

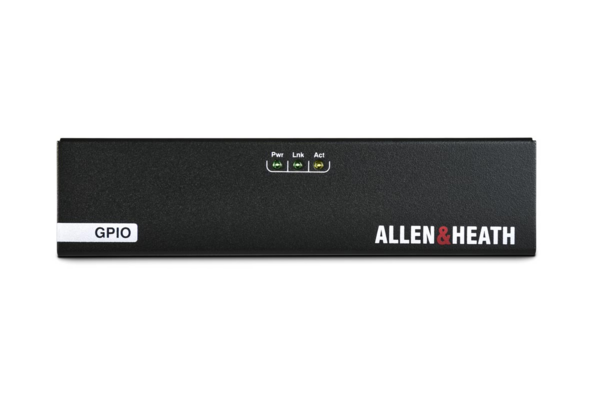

AH-DLIVE-GPIO
DLIVE GENERAL PURPOSE I/O INTERFACE, 8 GPI OPTO-ISOLATED CONTACT CLOSURES,
AH-DLIVE-GPIO
DLIVE GENERAL PURPOSE I/O INTERFACE, 8 GPI OPTO-ISOLATED CONTACT CLOSURES,
- UM : EA
The AH-DLIVE-GPIO is a general-purpose input/output (GPIO) interface designed for control integration between an AHM matrix processor or dLive/Avantis mixing system and third-party hardware. It enables signal switching and control communication across compatible devices.
This interface supports configurable input and output lines to facilitate integration within audio and control environments, allowing hardware interconnectivity through standardized GPIO functionality.
Features:
- Up to 8 networked GPIO units can be added to a AHM/dLive/Avantis system
- Networked Cat5 connection to AHM, Avantis mixer, dLive MixRack or Surface (<100m)
- 8 opto-isolated inputs
- 8 normally open (N/O) relay outputs, one of them configurable to Normally Closed output (N/C)
- Industry standard Phoenix connectors
- Freestanding or rack-mount (1u / ½ Width) operation
- PoE (IEEE 802.3af-2003) compliant
- 2 10V outputs (500mA max)
