AH-DX164-W | WALL BOX I/O EXPANDER 16 MIC/LINE IN, 4 LINE OUT (DX PORTS), CONNECTS TO DX PORTS, DX LINK CARD
AH-DX164-W
WALL BOX I/O EXPANDER 16 MIC/LINE IN, 4 LINE OUT (DX PORTS), CONNECTS TO DX PORTS, DX LINK CARD
AH-DX164-W
WALL BOX I/O EXPANDER 16 MIC/LINE IN, 4 LINE OUT (DX PORTS), CONNECTS TO DX PORTS, DX LINK CARD
- UM : EA

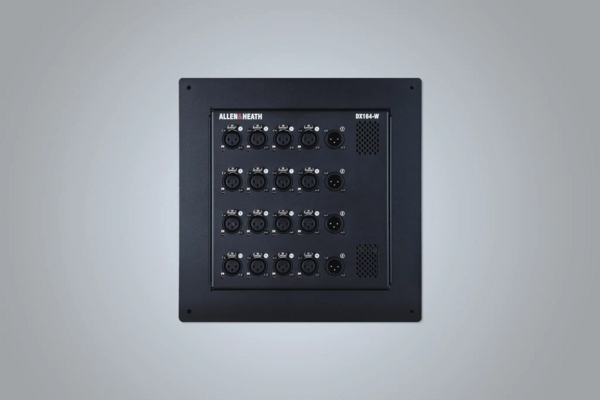

The AH-DX164-W is a wall-mountable expander designed to add remote input/output (I/O) capabilities to dLive, Avantis, SQ, and 96 kHz Qu mixers, as well as AHM audio matrix processors.
The reversible mounting frame allows for in-wall or on-wall mounting. With custom brackets, the unit can be fitted in a standard NEMA box, or mounted in a floor pocket for stage use.
The DX164-W can be placed up to 100m away from the mixer for maximum flexibility of positioning. The expander connects via a single Cat5e cable to the mixer or upstream DX Expander via a secure EtherCon port. A second locking EtherCon port is provided for redundant connection to compatible hardware, or for daisy-chaining to a downstream DX Expander for additional remote I/O.
Features:
- 16 Mic Preamps
- 4 Line Outs
- Redundant and Cascade Modes
- Plug-and-Play
