SRX910LA | DUAL 10-INCH POWERED LINE ARRAY LOUDSPEAKER, 600 WATTS CONTINUOUS CLASS D (400 LF, 200 HF)

The SRX910LA is a powered two-way line array loudspeaker designed for mid- to large-sized professional sound reinforcement applications. It features dual 10-inch neodymium Differential Drive woofers and a three-inch compression driver in a computer-optimized composite enclosure, resulting in a compact and lightweight form factor. Integrated digital signal processing and amplification enable consistent and optimized audio performance across various environments.

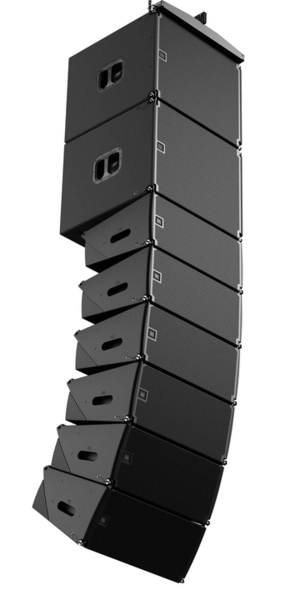

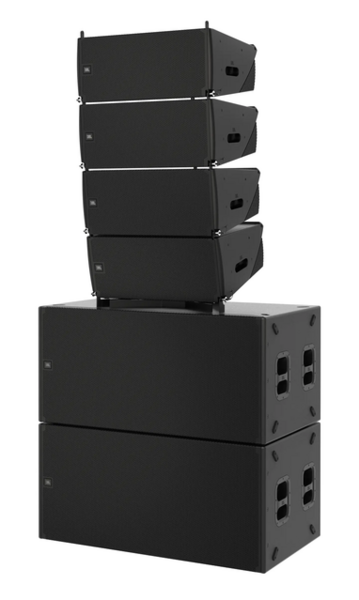

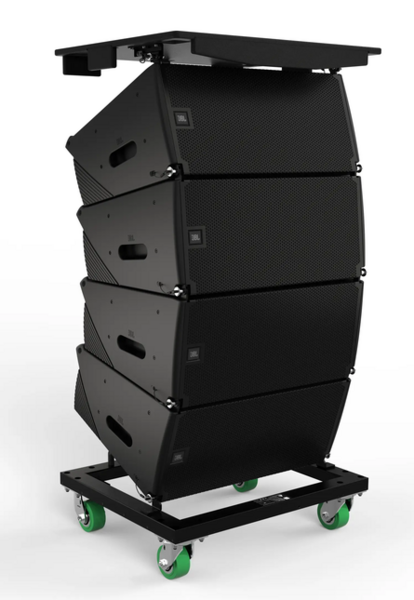

The enclosure incorporates a three-point rigging system compatible with a comprehensive set of accessories to facilitate scalable configurations for rental, touring, DJ, and fixed installation use cases. JBL Performance software provides system control and configuration capabilities on Windows, macOS, and iPadOS platforms.

• High-performance, high-density system
• High-power-handling transducers with low distortion and high fidelity
• Built-in, passively cooled Class D amplification with universal power supply
• Dual Ethernet ports with Neutrik etherCON connectors
• Supports HARMAN HControl Ethernet
• User-controllable DSP
• LevelMax limiting with excursion-control algorithms
• Rear-panel LCD for control access
• Reinforced composite loudspeaker enclosures
• Innovative three-point rigging system

Frequency Range	53 Hz - 19 kHz
Coverage Pattern	105 degrees nominal (400 Hz - 16 kHz)
Maximum SPL	135 dB
System Type	Line Array, two-way powered
Amplifier Design	Class-D
Continuous Power Rating	600 W (LF: 400 W, HF: 200 W)
LF Driver	2 x JBL 261G-1, 10 in, dual 2.0 in voice coil, neodymium Differential Drive
HF Driver	1 x JBL 2432H-3, 1.5 in exit, neodymium compression driver, 3 in voice coil
Enclosure	Polypropylene, aluminum baffle, plywood internal bracing, four integral recessed handholds
Inter-Enclosure Angles	0.5 to 12 degrees
