RS-702 | 2 CH. DUAL LISTEN MONAURAL BELTPACK: ENCORE TWO-CHANNEL STANDARD DUAL LISTEN MONAURAL BELTPACK
RS-702
2 CH. DUAL LISTEN MONAURAL BELTPACK: ENCORE TWO-CHANNEL STANDARD DUAL LISTEN MONAURAL BELTPACK
RS-702
2 CH. DUAL LISTEN MONAURAL BELTPACK: ENCORE TWO-CHANNEL STANDARD DUAL LISTEN MONAURAL BELTPACK
- UM : EA
- Estimated Weight: 3.1
The RS-702 is a two-channel analog beltpack designed to transmit power and audio signals via a 6-pin XLR line connector. It features high headroom and low-noise audio circuitry, along with a shaped frequency contour for audio clarity.
Features:

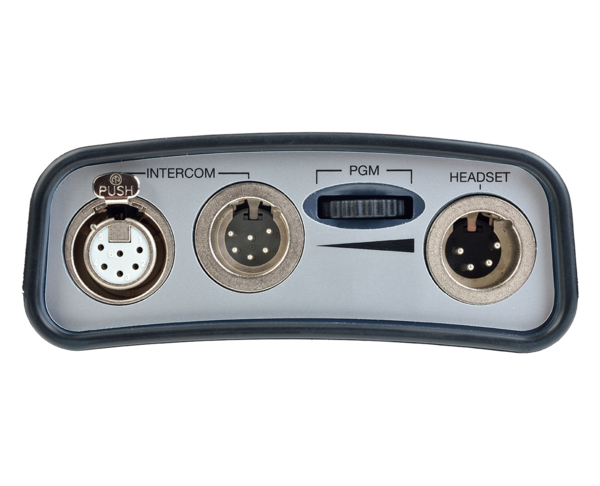

- Xlr-6 line connectors for 2-channel + program audio
- Visual led indicators on keypad
- Tactile call and talk buttons
- Recessed rotary volume controls with end stops
- Concealed programmable dip switches
- Program audio thumbwheel adjustment
- Compatible with clear-com analog partyline systems
- Low operating current for beltpack daisy-chaining
- Rugged and strong construction
| Frequency response | 280 – 15khz ± 3db |
|---|---|
| Microphone output to line – audio level | -9dbm |
| Microphone output to line – distortion | <0.1% |
| Microphone output to line – signal to noise | >65db |
| Frequency response – line to headphone | 150 – 20khz ± 3db |
| Headphone input from line – audio level | 7dbm |
| Headphone input from line – distortion | <0.5% |
| Headphone input from line – signal to noise | >50db |
| Earphone to mic – crosstalk | >80db |
